Machines
By using our own CNC controlled machine park, as well as through cooperation with our strategic partners, we are able to provide high-quality and professional metal processing services.
Below you can find out more about the characteristics of the machine park that you can count on if you decide to do business with us.
Laser cutting
CNC Fiber Laser 6 kW
Table size: 4000×2000
Accuracy: 0.2 mm
Maximum cutting thicknesses:
– structural steel: 0.4 – 20 mm
– stainless steel: 0.4 – 15 mm
– aluminum: 0.4 – 12 mm
– brass: 0.4 – 8 mm
Bending
CNC press brake:
– Maximum bending length 4050 mm
– bending capacity: 220 t
– maximum bending thickness: 10 mm (depending on product length and material)
Pipe and profile cutting
Cutting capacity:
– round 255 mm, square 230 mm, rectangular 300×180 mm at a 90° angle
– round 210 mm, square 190 mm, rectangular 200×180 mm at an angle of 45°
– round 135 mm, square 110 mm, rectangular 130×100 mm at an angle of 60°
Sheet metal rolling
Maximum rolling width: 1550 mm
Roll capacity with pre-bending: 4 / 5 mm
Rolling capacity: 5 / 6 mm
Min. bending diameter: 195 mm

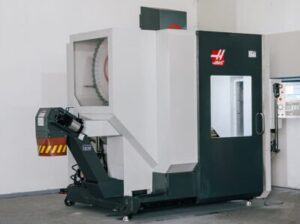

CNC milling
- 5-axis milling
- travel X-axis: 762 mm
- travel Y-axis: 508 mm
- travel Z-axis: 508 mm
- Platter diameter: 500 mm
- max. part weight: 300 kg
